Probability Distributions

Some special distributions and visualizing probabilities

In yesterday’s class, we saw how to compute probabilities for the uniform distribution, when each outcome is equally likely. However, there are many situations where this is not the case and some outcomes are more likely that others. In this set of notes, we are going to talk about how to visualize probabilities using tables and histograms, as well as how to visualize simulations of outcomes from actions such as tossing coins or rolling dice.

Probability distributions and histograms

Probability distributions

Consider a box with 5 tickets inside, 2 of which have the number “2” and the others being 1,3,4.

There are more 2’s than any other ticket type in the box, so if we draw one ticket at random from this box, we know that the probabilities of the four distinct outcomes can be listed in a table as:

Outcome	\(1\)	\(2\)	\(3\)	\(4\)
Probability	\(\displaystyle \frac{1}{5}\)	\(\displaystyle \frac{2}{5}\)	\(\displaystyle \frac{1}{5}\)	\(\displaystyle \frac{1}{5}\)

What we have described in the table above is a probability distribution.

A probability distribution assigns each outcome a number between 0 and 1 which is the probability of that outcome, and the total probability must add up to 1. We have shown how the total probability of one is distributed among all the possible outcomes. Since the ticket \(\fbox{2}\) is twice as likely as any of the other outcomes, it gets twice as much of the probability.

Probability histograms

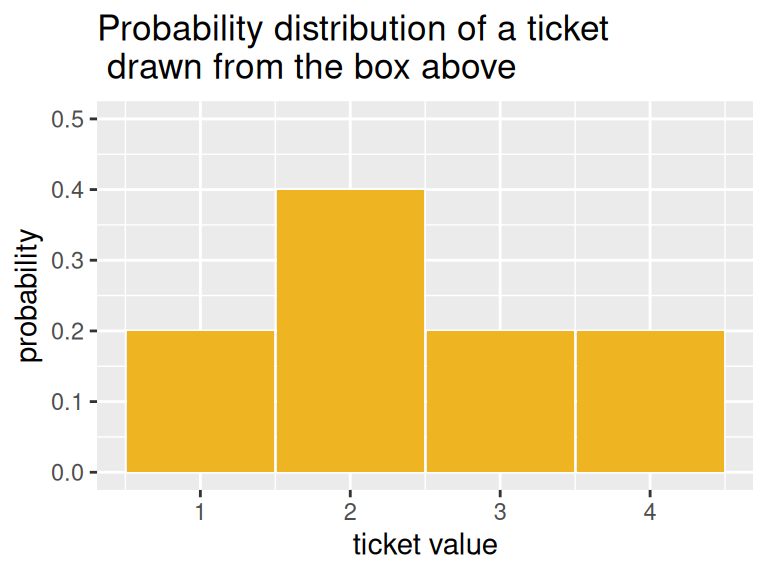

A table is nice, but a visual representation would be even better.

We have represented the distribution in the form of a histogram, with the areas of the bars representing probabilities. Notice that this histogram is different from the ones we have seen before, since we didn’t collect any data. We just defined the probabilities based on the outcomes, and then drew bars with the heights being the probabilities. This type of theoretical histogram is called a probability histogram.

Empirical histograms

What about if we don’t know the probability distribution of the outcomes of an experiment? For example, what if we didn’t know how to compute the probability distribution above? What could we do to get an idea of what the probabilities might be? Well, we could keep drawing tickets over and over again from the box, with replacement (that is, we put the selected tickets back before choosing again), keep track of the tickets we draw, and make a histogram of our results. This kind of histogram, which is the kind we have seen before, is a visual representation of data, and is called an empirical histogram.

On the x-axis of this histogram, we have the ticket values; on the y-axis, we have the proportion of times that this ticket was selected out of the 50 with-replacement draws we took.We can see that the sample proportions looks similar to the values given by the probability distribution, but there are some differences. For example, we appear to have drawn more \(3\)s and less \(4\)s than what was to be expected. It turns out that the counts and proportions of the drawn tickets are:

Ticket	Number of times drawn	Proportion of times drawn
\(\fbox{1}\)	10	0.2
\(\fbox{2}\)	24	0.48
\(\fbox{3}\)	10	0.2
\(\fbox{4}\)	6	0.12

What we have seen here is how when we draw at random, we get a sample that resembles the population, that is, a representative sample, but it isn’t exactly the true probabilities. If we increase our sample, however, say to 500, we will get something that more closely aligns with the truth.

Examples

Rolling a pair of dice and summing the spots

The outcomes are already numbers, so we don’t need to represent them differently. We know that there are \(36\) total possible equally likely outcomes when we roll a pair of dice, but when we add the spots, we have only 11 possible outcomes, which are not equally likely (the chance of seeing a \(2\) is \(1/36\), but \(P(6)=5/36\)).

The probability histogram will have the possible outcomes listed on the x-axis, and bars of width \(1\) over each possible outcome. The height of these bars will be the probability, so that the areas of the bars represent the probability of the value under the bar. The height, which is the probability, is written on the top of each bar.

What about the probability distribution? Make a table showing the probability distribution for rolling a pair of dice and summing the spots.

Check your answer

Outcome	\(2\)	\(3\)	\(4\)	\(5\)	\(6\)	\(7\)	\(8\)	\(9\)	\(10\)	\(11\)	\(12\)
Probability	\(\displaystyle \frac{1}{36}\)	\(\displaystyle \frac{2}{36}\)	\(\displaystyle \frac{3}{36}\)	\(\displaystyle \frac{4}{36}\)	\(\displaystyle \frac{5}{36}\)	\(\displaystyle \frac{6}{36}\)	\(\displaystyle\frac{5}{36}\)	\(\displaystyle \frac{4}{36}\)	\(\displaystyle \frac{3}{36}\)	\(\displaystyle \frac{2}{36}\)	\(\displaystyle \frac{1}{36}\)

Tossing a fair coin 3 times and counting the number of heads

We have seen that there are 8 equally likely outcomes from tossing a fair coin three times: \(\{HHH, HHT, HTH, THH, TTH, THT, HTT, TTT\}\). If we count the number of \(H\) in each outcome, and write down the probability distribution of the number of heads, we get:

Outcome	\(0\)	\(1\)	\(2\)	\(3\)
Probability	\(\displaystyle \frac{1}{8}\)	\(\displaystyle \frac{3}{8}\)	\(\displaystyle \frac{3}{8}\)	\(\displaystyle \frac{1}{8}\)

What would the probability histogram look like?

Check your answer

Special distributions

In statistics, there are certain situations that come up over and over again and we wind up using the same distribution many times. These situations are so common that statisticians have developed special names for distributions we come across all the time, and written down the function that describes the probabilities of each outcome. You have already been computing a lot of these “by hand” in previous examples, we just had not learned the formula yet.

There are many special distributions that every student of probability must know. Some have names that define some mathematical property about how they behave, names like:

Binomial Distribution, Geometric Distribution, Exponential Distribution (and one you know quite well, Uniform Distribution)

Some are named after famous mathematicians who first invented the distribution, such as:

Gaussian distribution, Poisson distribution, Bernoulli distribution

And sometimes, statisticians are not the most creative people and just named their distribution after a letter:

F Distribution, T distribution, Gamma Distribution, Beta Distribution.

Here are a few, and we will learn some more later in the course. We have already seen most of these distributions. All we are doing now is identifying their names. First, we need a vocabulary term:

Parameter of a probability distribution: A constant(s) number associated with the distribution. If you know the parameters of a probability distribution, then you can compute the probabilities of all the possible outcomes.

Each of the distributions we will cover below has a parameter(s) associated with it.

Discrete uniform distribution

This is the probability distribution over the numbers \(1, 2, 3 \ldots, n\). We have seen it for dice above. This probability distribution is called the discrete uniform probability distribution, since each possible outcome has the same probability, that is, \(1/n\). We call \(n\) the parameter of the discrete uniform distribution.

Bernoulli distribution

This is a probability distribution for an outcome that is either 0 or 1. All that can be defined here is the probability of \(\fbox{1}\) being some number \(p\), and therefore, the probability of \(\fbox{0}\) is \((1-p)\). We have already seen some examples of probability histograms for this distribution. We usually think of the possible outcomes of a Bernoulli distribution as success and failure, and represent a success by \(\fbox{1}\) and a failure by \(\fbox{0}\).

For the Bernoulli distribution, our parameter is \(p = P\left(\fbox{1}\right)\). If we know \(p\), we also know the probability of drawing a ticket marked \(\fbox{0}\).

In the figure above, the first histogram is for a Bernoulli distribution with parameter \(p = 1/2\), the second \(p=3/4\), and the third has \(p = 2/3\). We can write this as \(\text{Bernoulli(p)}\), ex \(\text{Bernoulli(2/3)}\).

Binomial Distribution

The binomial distribution, which describes the total number of successes in a sequence of \(n\) independent Bernoulli trials, is one of the most important probability distributions. For example, consider the outcomes from tossing a coin \(n\) times and counting the total number of heads across all \(n\) tosses, where the probability of heads on each toss is \(p\). Each toss is one Bernoulli trial, where a success would be the coin landing heads. The binomial distribution describes the probabilities of the total number of heads in three tosses. We saw what this distribution looks like in the case where \(n = 3\) for three tosses of a fair coin.

What would the probability distribution and histogram for the number of heads in three tosses of a biased coin like, where \(P(H) = 2/3\)? Make sure you know how the probabilities are computed. For example, \(P(HHH) = (2/3)^3 = 8/27\).

Check your answer

Note that the outcomes \(HHT, HTH, THH\) all have the same probability, as do the outcomes \(TTH, THT, HTT\), since the probability only depends on how many heads and how many tails we see in three tosses, not the order in which we see them. We get the probability of 2 heads in 3 tosses by adding the probabilities of all three outcomes \(HHT, HTH, THH\), since they are mutually exclusive. (In three tosses, we can see exactly one of the possible 8 sequences listed above.)

More generally, suppose that we have \(n\) independent trials, where each trial can either result in a “success” (like drawing a ticket marked \(\fbox{1}\)) with probability \(p\); or a “failure” (like drawing \(\fbox{0}\)) with probability \(1-p\). In the case of the Bernoulli distribution, \(n = 1\).

The multiplication rule for independent events tells us how to compute the probability of a sequence that consisted of the first \(k\) trials being successes and the rest of the \(n-k\) trials being failures. The probability of this particular sequence of \(k\) successes followed by \(n-k\) failures is (by multiplying their probabilities) given by: \[ p^k \times (1-p)^{n-k} \] Now this is the probability of one particular sequence: \(SSS\ldots SSFF \ldots FFF\), but as we saw in the example above, only the number of successes and failures matter, not the particular order. So every sequence of \(n\) trials in which we have \(k\) successes and \(n-k\) failures has the same probability.

How many such sequences are there? We can count them using our rules above. We have \(n\) spots in the sequence, of which \(k\) have to be successes. The number of such sequences of length \(n\) consisting of \(k\) \(S\)’s and \(n-k\) \(F\)’s) is given by \(\displaystyle \binom{n}{k}\). Each such sequence has probability \(\displaystyle p^k \times (1-p)^{n-k}\). Adding up all these \(\displaystyle \binom{n}{k}\) probabilities (of each such sequence) gives us the formula for the probability of \(k\) successes in \(n\) trials: \[ \binom{n}{k} \times p^k \times (1-p)^{n-k} \]

The probability distribution described by the above formula is called the binomial distribution. \(n\) and \(p\) are parameters of the distribution, and \(k \in \{0,\cdots, n\}\) is the location we would want to evaluate the distribution at. For example, what is the probability of getting 3 heads out of 10 coin tosses when the probability of heads on each toss is 0.4?

\[\text{Binomial}_{10, 0.4}(3) = \binom{10}{3}(0.4)^{3}(0.6)^{7}\]

Our friend, the “n choose k” function \(\binom{n}{k}\) actually has another name in mathematics, the binomial coefficient, and this distribution inherits it’s name from it.The binomial distribution has two parameters: the number of trials \(n\) and the probability of success on each trial, \(p\).

Example

Toss a weighted coin, where \(P(\text{heads}) = .7\) five times. What is the probability that you see exactly four heads across these five tosses?

Check your answer

Across five trials, we need to see four heads and one tails. Since each toss is independent, one possible way to obtain what we are looking for is \(HHHHT\). This is given by

\[ (.7)^4 \times (.3)^1 \]

However, we need to consider all the possible orderings of tosses that involve four heads and one tail. This is given by the binomial coefficient \(\binom{5}{4}\). Our final probability is therefore:

\[ \binom{5}{4} (.7)^4 \times (.3)^1 \approx 0.36 \]

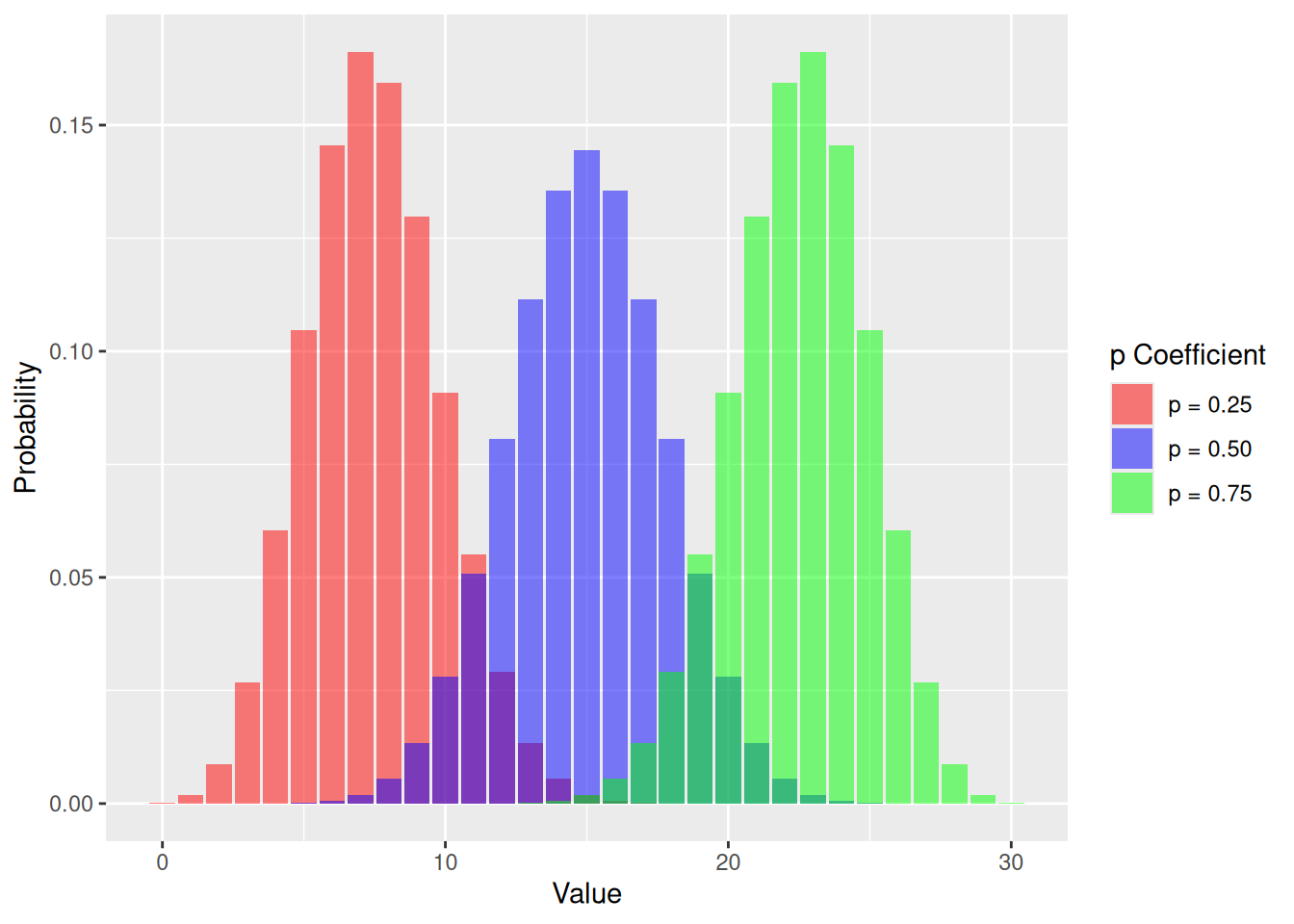

As you might imagine, the parameters \(n\) and \(p\) change the shape of the distribution. Let’s set \(n = 30\) and \(p = 0.5\) \(p = 0.25\), and \(p= 0.75\), see how the different \(p\) change the shape of the distribution.

Geometric Distribution

Consider again a sequence of independent Bernoulli trials, where each trial results in a “success” with probability \(p\) and a “failure” with probability \(1-p\). In the binomial distribution, we fixed the number of trials at \(n\) ahead of time and asked how many successes we saw. Now we turn the question around: how long do we have to wait until we see our first success? For example, we might toss a coin where the probability of heads is \(p\) over and over, stopping the moment we get our first heads, and count the total number of tosses it took.

Notice what is fixed and what is random has swapped. In the binomial, the number of trials \(n\) was fixed and the number of successes was random. Here, the number of successes is fixed at one, and the number of trials is what varies. The distribution that describes the probabilities of the number of trials needed to obtain the first success is called the geometric distribution.

How do we compute these probabilities? Suppose we want the probability that it takes exactly \(k\) trials to get our first success. For that to happen, one very specific thing must occur: the first \(k-1\) trials must all be failures, and the \(k\)-th trial must be a success. Unlike the binomial, where many different orderings gave the same number of successes, here there is only one sequence that works: \[ \underbrace{FF\ldots F}_{k-1 \text{ failures}}S \] Since the trials are independent, we multiply their probabilities together. The \(k-1\) failures each contribute a factor of \((1-p)\), and the final success contributes a factor of \(p\). This gives us the formula for the probability that the first success occurs on trial \(k\): \[ P(k) = (1-p)^{k-1} \times p \] The geometric distribution has just one parameter, the probability of success on each trial, \(p\). The location we evaluate it at is \(k \in \{1, 2, 3, \ldots\}\) — and note that unlike the binomial, there is no upper limit on \(k\), since in principle we could go arbitrarily long before seeing our first success.

Example

Toss a weighted coin, where \(P(\text{heads}) = .7\). What is the probability that the first heads appears on the fourth toss?

Check your answer

For the first heads to land on the fourth toss, the first three tosses must all be tails, and the fourth must be heads. There is only one such sequence, \(TTTH\), so we simply multiply:

\[ \text{Geometric}_{0.7}(4) = (0.3)^3 \times (0.7)^1 \approx 0.019 \]

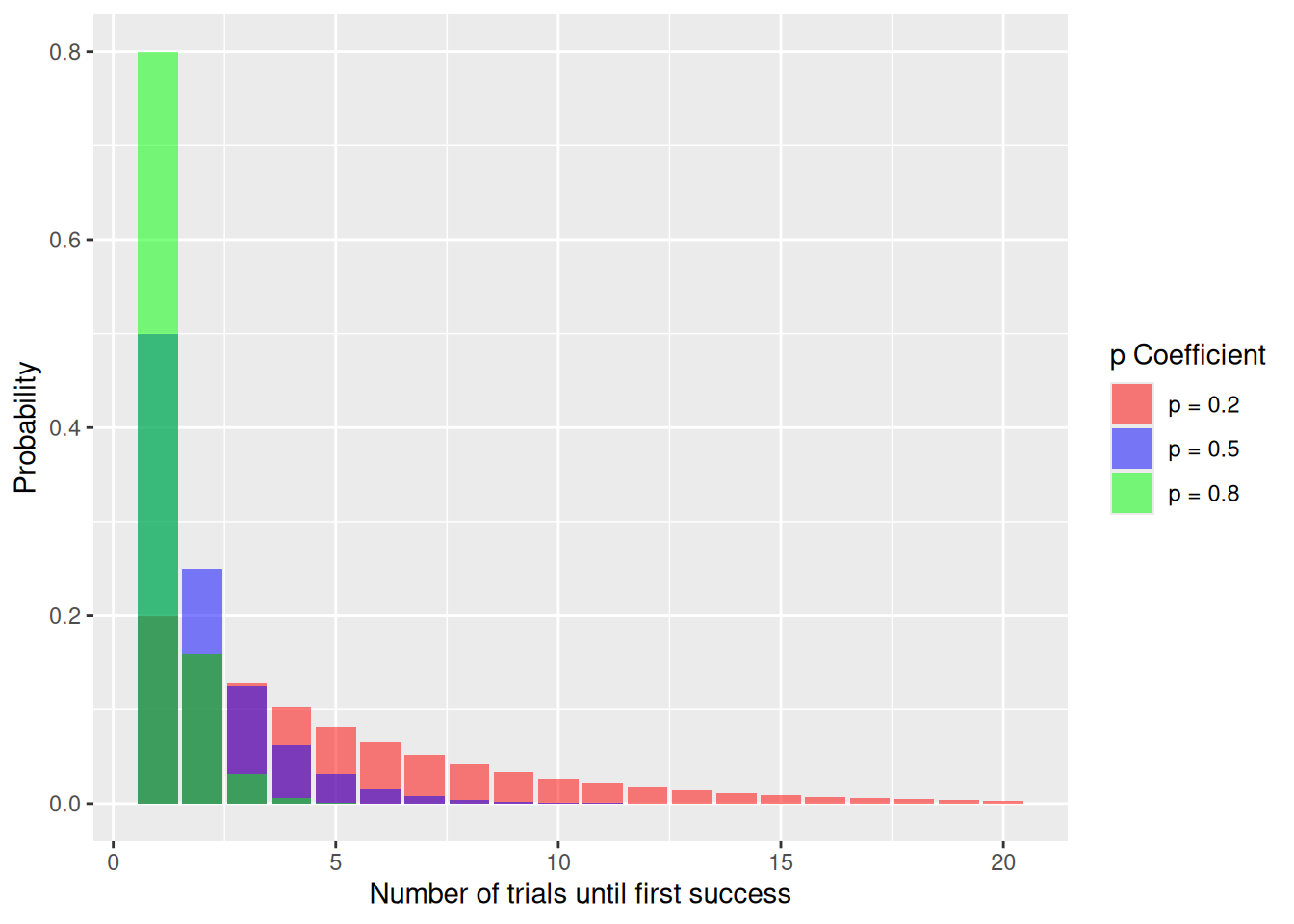

As with the binomial, the parameter \(p\) changes the shape of the distribution. A large \(p\) means we tend to succeed quickly, so the probability piles up on small values of \(k\); a small \(p\) means we often wait a long time, so the distribution stretches out with a long tail to the right. Let’s set \(p = 0.2\), \(p = 0.5\), and \(p = 0.8\) and see how the shape changes.

Hypergeometric distribution

In the binomial scenario described above, we had \(n\) independent trials, where each trial resulted in a success or a failure. This is like sampling with replacement from a box of \(0\)’s and \(1\)’s. Now consider the situation when we have a box with \(N\) tickets marked with either \(\fbox{0}\) or \(\fbox{1}\).

As usual, the ticket marked \(\fbox{1}\) represents a success. Say the box has \(G\) tickets marked \(\fbox{1}\) (and therefore \(N-G\) tickets marked \(\fbox{0}\) representing failures). Suppose we draw a simple random sample of size \(n\) from this box. A simple random sample is a sample drawn without replacement, and on each draw, every ticket is equally likely to be selected from among the remaining tickets. Then, the probability of drawing a ticket marked \(\fbox{1}\) changes from draw to draw.

What is the probability that we will have exactly \(k\) successes among these \(n\) draws? The probability distribution that gives us this answer is given by

\[ \frac{\binom{G}{k}\times \binom{N-G}{n-k}}{\binom{N}{n}} \]

and is called the hypergeometric distribution. It has three parameters, \(n\), \(N\) and \(G\). This is a wacky formula, so let’s explain it piece by piece, starting with the numerator and then moving to the denominator!

Numerator

We count the number of samples drawn without replacement that have \(k\) tickets marked \(\fbox{1}\). Since there are \(G\) tickets marked \(\fbox{1}\) in the box, and \(\displaystyle \binom{G}{k}\) ways to choose exactly \(k\) of them. Similarly, there are \(N-G\) tickets marked \(\fbox{0}\) in the box, and \(\displaystyle \binom{N-G}{n-k}\) ways to choose exactly \(n-k\) of them. The total number of ways to have \(k\) \(\fbox{1}\)s and \(n-k\) \(\fbox{0}\)s is therefore (by multiplication):

\[ \binom{G}{k}\times \binom{N-G}{n-k} \]

Denominator

We count the total number of simple random samples of size \(n\) that can be drawn from a pool of \(N\) observations. This is given by \(\displaystyle \binom{N}{n}\).

Example

Say we have a box of \(10\) tickets consisting of \(4\) tickets marked \(\fbox{0}\) and \(6\) tickets marked \(\fbox{1}\), and draw a simple random sample of size \(3\) from this box.

What is the probability that two of the tickets drawn are marked \(\fbox{1}\)?

Check your answer

We draw \(3\) tickets without replacement. We need two of these tickets to be marked \(\fbox{1}\) and there are six in total to choose from; we need one of them to be marked \(\fbox{0}\) and there are four in total to choose from. Therefore, there are

\[ \binom{6}{2}\times \binom{4}{1} = 60 \] different ways to pick three tickets in this manner.

How many total ways are there to draw \(n=3\) tickets from a box of \(N=10\)? This is given by \(\binom{10}{3} = 120\).

Therefore, our final answer is given by

\[ \frac{\binom{6}{2}\times \binom{4}{1}}{\binom{10}{3}} = \frac{60}{120} = \frac{1}{2} \]

Binomial vs Hypergeometric distributions

Both these distributions deal with:

a fixed number of trials, or instances of the random experiment;
outcomes that are deemed either successes or failures.

The difference is that for a binomial random variable, the probability of a success stays the same for each trial, and for a hypergeometric random variable, the probability changes with each trial.

The Ideas in Code

Before discussing how to simulate the distributions, we are going to introduce three more useful functions.

Three useful functions

1. `rep()`: replicates values in a vector

Sometimes we need to create vectors with repeated values. In these cases, rep() is very useful.

Arguments
- x: the vector or list that is to be repeated. This must be specified
- times: the number of times we should repeat the elements of x. This could be a vector the same length as x detailing how many times each element is to be repeated, or it could be a single number, in which case the entire x is repeated that many times.
- each: the default is 1, and if specified, each element of x is repeated each times.

2. `replicate()`: repeat a specific set of tasks a large number of times.

Arguments
- n: the number of times we want to repeat the task. This must be specified
- expr: the task we want to repeat, usually an expression that is some combinations of functions, for example, maybe we take a sample from a vector, and then sum the sample values.’

Note, this is a lot like the for loop we learned yesterday, but slightly less useful. replicate() will let you repeat a single line of code many times, but a for loop is more useful to re-run a whole chunk of code multiple times. So if it is a single line of code, a replicate() can be fine.

3. `geom_col()`: plotting with probability

When plotting probability histograms, we know exactly what the the height of each bar should be. This is as opposed to the bar charts you have seen before (and empirical histograms), where we are just trying to visualize the data that we have collected.

geom_col() creates a bar chart in which the heights represent numbers that can be specified via an aesthetic. In other words, the y variable will appear in our call to aes()!

Example: Rolling a die twice and summing the spots

Code along

As you read through the code in this section, keep RStudio open in another window to code along at the console. Keep in mind that we use set.seed() more than once for demonstration purposes only.

Suppose we want to simulate the task of rolling a pair of die and summing the two spots. We can accomplish this task and examine our results using the functions we have just introduced. First, we will make a vector representing a fair, six-sided die.

die <- seq(from = 1, to = 6, by = 1)

Obtaining a sum

Method 1 - `replicate()`

We can use the sample() function to roll the die twice; this will output a vector with two die numbers. Then, we can take the sum of this vector by nesting the call to sample() inside of sum.

set.seed(214)
sum(sample(die, size = 2, replace = TRUE))

[1] 7

If we would like to repeat this action many times (for instance, in a game of Monopoly, each player has to roll two dice on their turn and sum the spots), the replicate() function will come in handy. In the following line of code, we obtain 10 sums.

replicate(n= 10, expr = sum(sample(die, size = 2, replace = TRUE)))

 [1] 11  8  8 12  5  7  8  7 10  7

Method 2 - `rep()`

We could also roll the die in advance and then sample from the possible sums: 2 through 12. However, when rolling the two die, there is only one way to get a sum of \(2\) (both dice need to be one), but six ways to get a sum of \(7\). This shows that if we want to represent this action of rolling a pair of dice and taking the sum of spots, we have to use a box in which values will be repeated to reflect their probability. We can use the times argument of the rep() function to make such a box. The number \(2\) is repeated once, the number \(3\) is repeated twice, and so on until the number \(7\) is repeated six times. We can then sample once from this box.

possible_sums <- seq(from = 2, by = 1, to = 12)
correct_sums <- rep(possible_sums,
                    times = c(1,2, 3, 4, 5, 6, 5, 4, 3, 2, 1))
correct_sums

 [1]  2  3  3  4  4  4  5  5  5  5  6  6  6  6  6  7  7  7  7  7  7  8  8  8  8
[26]  8  9  9  9  9 10 10 10 11 11 12

To get 10 sums as we did before, we just need to sample with ten times with replacement from this new box, correct_sums.

sample(x = correct_sums, size = 10, replace = TRUE)

 [1] 7 4 8 9 2 7 4 7 6 8

Visualizing our results

Making a probability histogram with `geom_col()`

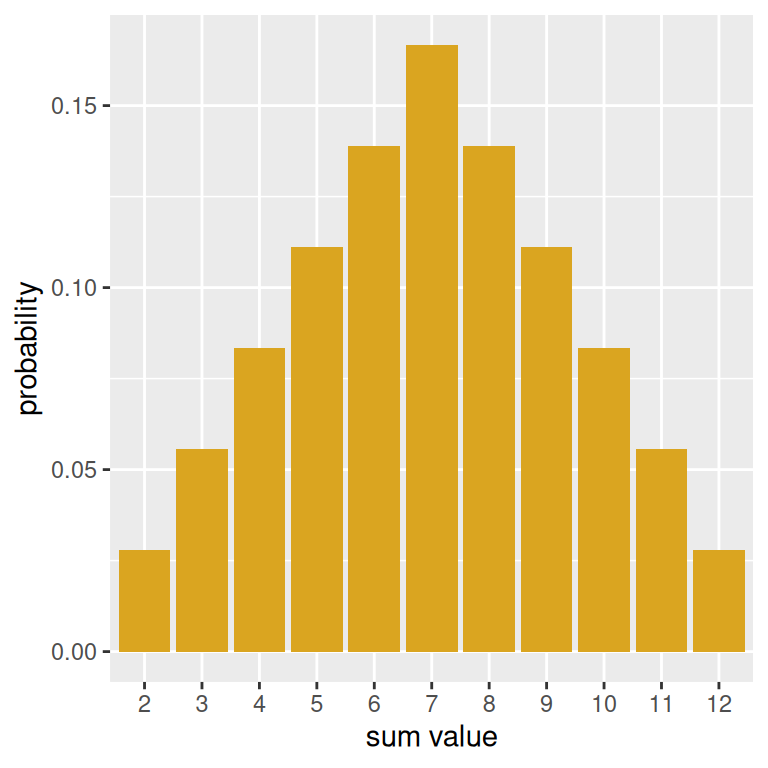

First, let’s create a vector with the probabilities associated with each possible that can be obtained from rolling two dice. We are taking these probabilities from the drawn probability histogram earlier in the notes.

prob_sums <- c(1,2,3,4,5,6,5,4,3,2,1)/36

Now, using the above and the possible_sums vector from before, we can make a data frame with the information about the probability distribution and create a probability histogram, which in turn can be used to make a plot with geom_col().

prob_hist <- data.frame(possible_sums, prob_sums) |>
  ggplot(mapping = aes(x = factor(possible_sums),
                       y = prob_sums)) +
  geom_col(fill = "goldenrod") +
  labs(x = "sum value",
       y = "probability")
prob_hist

The use of factor() is to make sure that for the purposes of the plot, that the sum values are treated categorically.

Performing a simulation and making an empirical histogram

Let’s simulate rolling two die and and computing a sum fifty times Then, we can make a data frame out of our results and find the total amount of rolls, grouped by face. This can be done with the n() summary function– and if we divide by 50, we can get the sample proportions of each sum.

set.seed(214)

results <- replicate(n= 50,
                     expr = sum(sample(die, size = 2, replace = TRUE)))

empirical <- data.frame(results) |>
  group_by(results) |>
  summarise(props = n()/50)
empirical

# A tibble: 11 × 2
   results props
     <dbl> <dbl>
 1       2  0.04
 2       3  0.02
 3       4  0.06
 4       5  0.1
 5       6  0.08
 6       7  0.24
 7       8  0.1
 8       9  0.12
 9      10  0.14
10      11  0.08
11      12  0.02

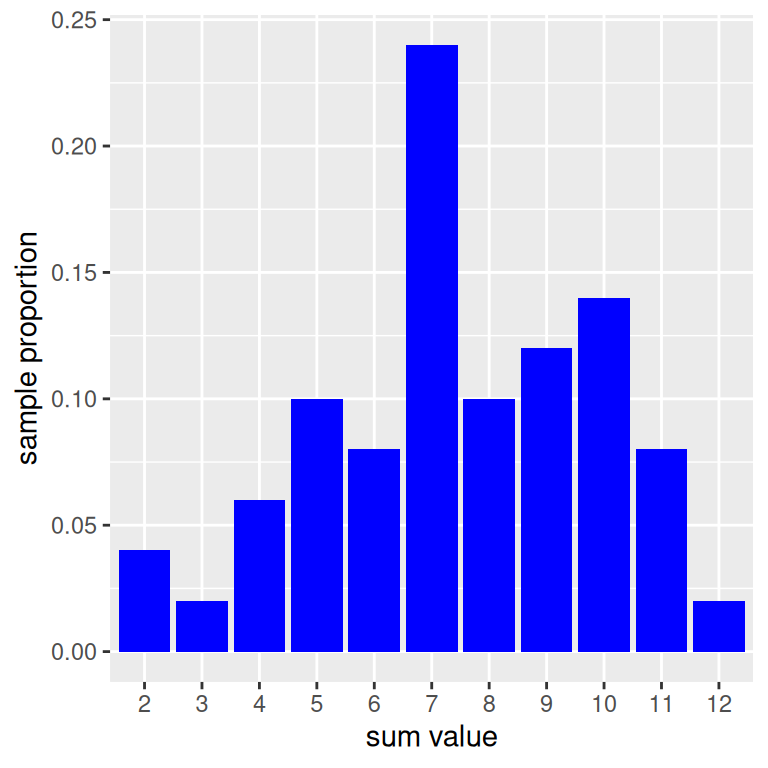

Now, we can construct an empirical histogram using the empirical data frame.

emp_50 <- empirical |>
  ggplot(mapping = aes(x = factor(results),
                       y = props)) +
  geom_col(fill = "blue") +
  labs(x = "sum value",
       y = "sample proportion")
emp_50

Comparing our results to the truth

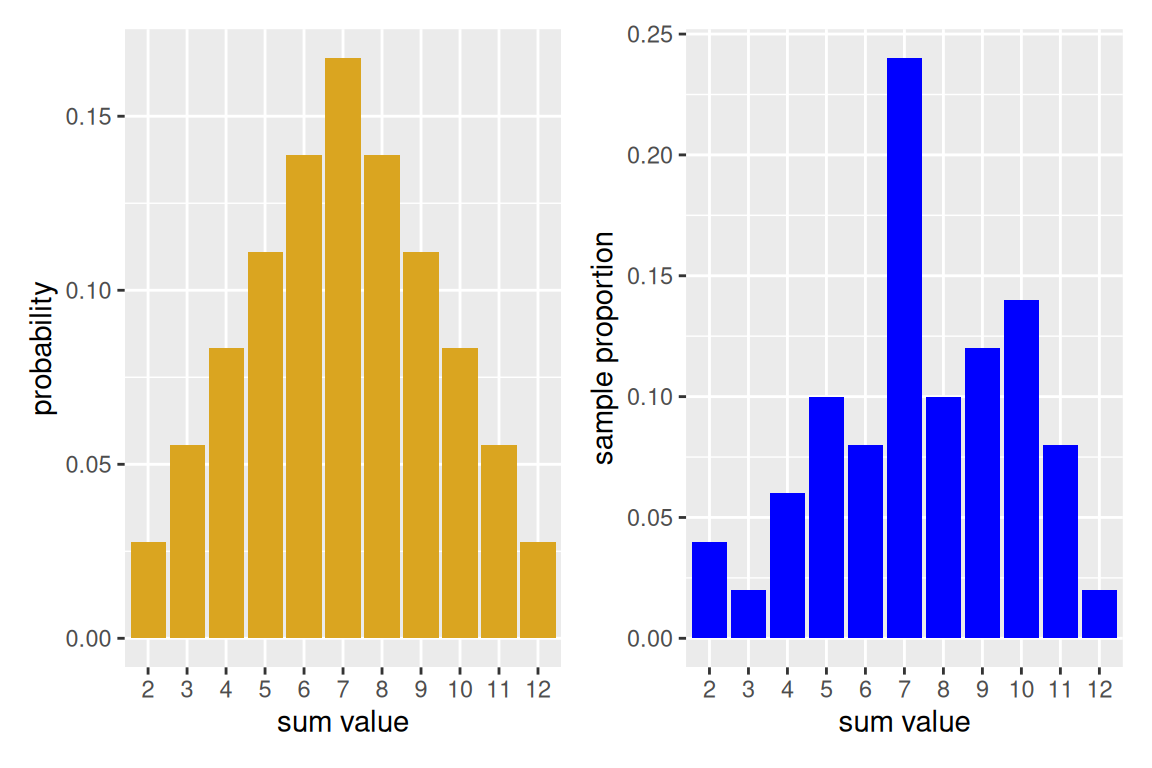

You may have wondered why we bothered to save the plot objects. The reason is that we can use a nifty library called patchwork which will help us to more easily visualize multiple plots at once by using mathematical and logical syntax. For instance, using + will put plots side by side.

library(patchwork)
prob_hist + emp_50

With only 50 experiments run, we see that the empirical histogram doesn’t quite match. However, modify the above code by increasing the number of repetitions, and you will see the empirical histogram begin to resemble more closely true probability distribution. This is an example of long-run relative frequency.

Summary

Defined probability distributions
Defined some famous named distributions (Bernoulli, discrete uniform, binomial, geometric, hypergeometric)
Visualized probability distributions using probability histograms
Looked at the relationship between empirical histograms and probability histograms.
Introduced functions rep(), replicate(), geom_col()
Simulated random experiments such as die rolls and coin tosses to visualize the distributions.
